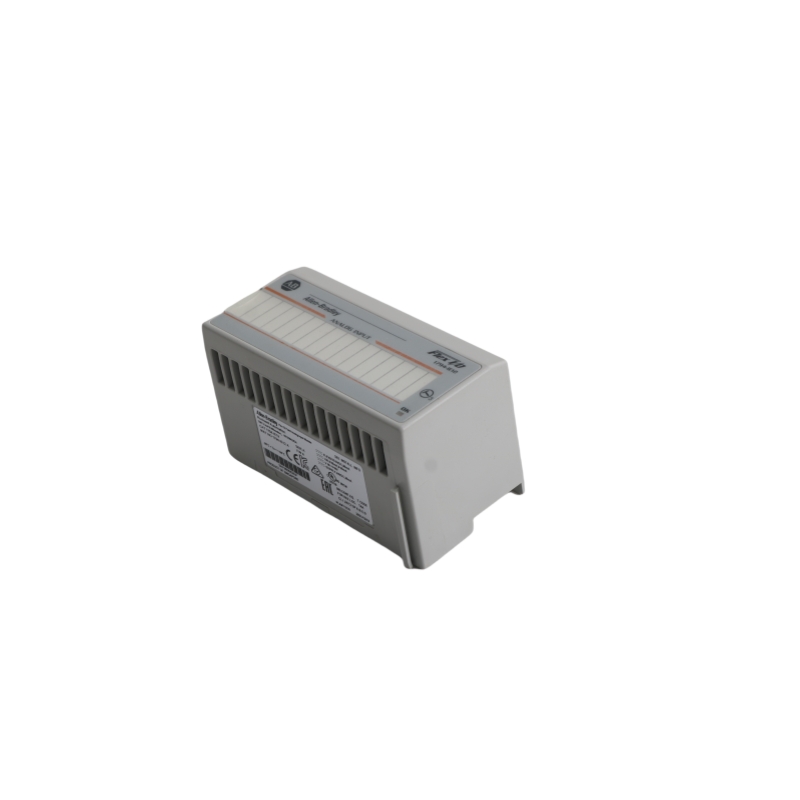

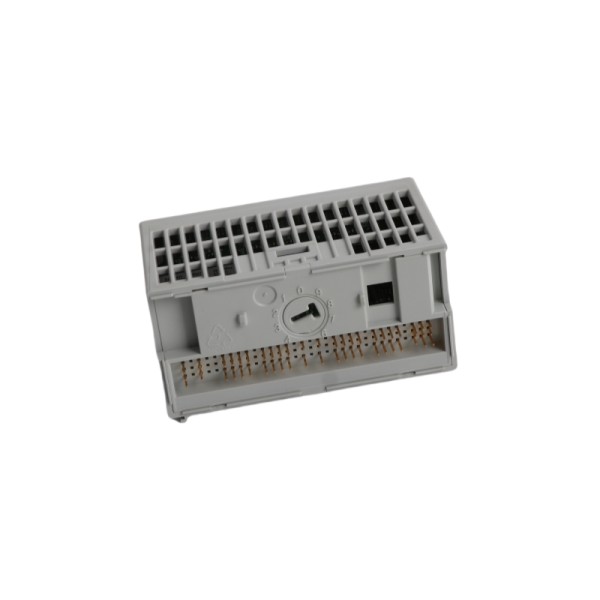

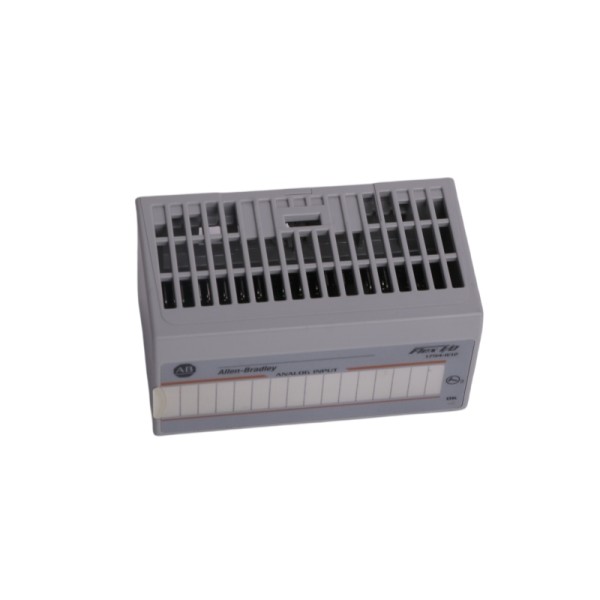

Allen bradley 1794-IE12 Flex I/O Analog Input Module

Technical Specifications of the Allen-Bradley 1794-IE12

Manufacturer: Allen-Bradley (Rockwell Automation)

Model: 1794-IE12

Dimensions: Approximately 100 mm (H) x 25 mm (W) x 88 mm (D) - Note: These dimensions are approximate and can vary slightly.

Weight: Approximately 0.15 kg

Material: High-quality, industrial-grade components

Power Supply: 24V DC via Flex I/O adapter

Number of Inputs: 4 isolated analog inputs, configurable for voltage or current

Resolution: 16-bit

Communication: Integrated into the Flex I/O system via an adapter module

Key Features

High Accuracy Measurement: The 1794-IE12 provides precise analog-to-digital conversion, ensuring accurate monitoring of process variables.

Configurable Inputs: Each of the four analog inputs can be independently configured for different signal types, allowing flexibility in sensor selection.

Channel Isolation: Inputs are isolated from each other and the system backplane to minimize noise and interference, ensuring data integrity.

Applications of the Allen-Bradley 1794-IE12

This versatile module is used across numerous industries in applications such as:

Process Control: Measuring temperature, pressure, flow, and level in chemical plants, oil refineries, and food processing facilities.

Manufacturing: Acquiring analog data from sensors in automated production lines for quality control and process optimization.

Water and Wastewater Management: Measuring water levels, flow rates, and chemical concentrations in water treatment facilities.

Energy Management: Monitoring voltage, current, and power consumption for efficient energy distribution.

Why Choose the Allen-Bradley 1794-IE12 ?

The Allen-Bradley 1794-IE12 module offers a compelling combination of performance, flexibility, and reliability for a wide range of industrial applications. Its high accuracy data acquisition capabilities, configurable input channels, channel isolation, and robust design make it a superior choice for demanding environments. By choosing this module, you ensure:

Increased Measurement Precision: The 16-bit resolution captures even minor variations in analog signals, allowing for precise control and process optimization.

Reduced Noise and Interference: Isolated channels provide more stable and reliable readings by minimizing noise and unwanted signal interference, even in challenging electrical environments.
