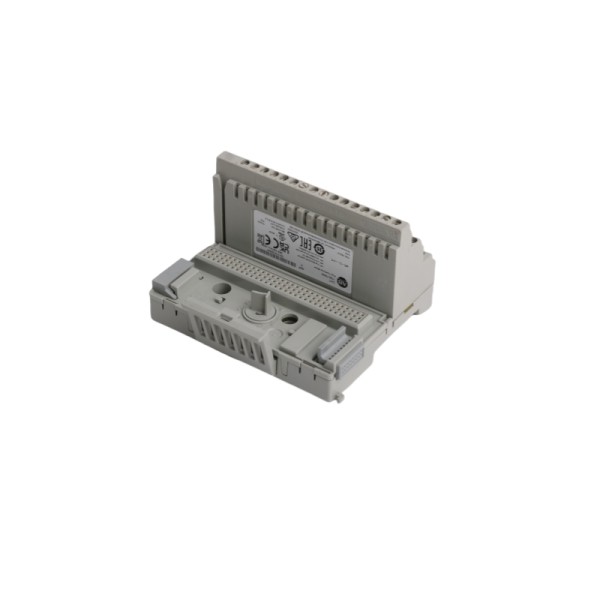

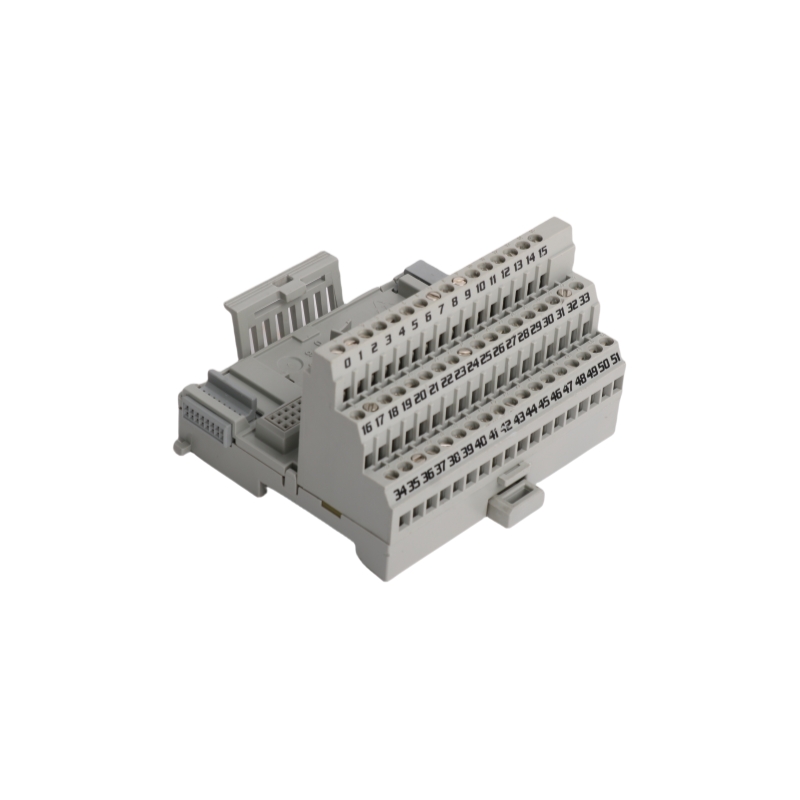

Allen bradley 1794-TB3 Terminal Base Units

1794-TB3 Terminal Base Units: A Comprehensive Overview

The 1794-TB3 Terminal Base Units by Allen-Bradley are essential components for expanding your industrial automation systems. These terminal base units are designed to simplify the installation of input and output modules, ensuring that control systems function efficiently and reliably.

Technical Specifications of the 1794-TB3

Manufacturer: Allen-Bradley

Part Number: 1794-TB3

Type: Terminal Base Unit for Flex I/O Modules

Size: 7.8 cm (H) x 19.0 cm (W) x 5.0 cm (D)

Mounting Style: DIN rail or panel mounting options for flexibility

Operating Temperature: -25°C to 60°C (-13°F to 140°F)

Weight: 0.75 kg (1.65 lbs)

Voltage: Compatible with standard industrial voltage inputs

Communication: Works with Allen-Bradley’s Flex I/O system for data transmission and control

Environmental Protection: Designed to withstand typical industrial environments, with an IP20 rating for protection from dust and foreign objects.

Applications of the 1794-TB3 Terminal Base Units

The 1794-TB3 Terminal Base Units are used in a wide range of industries and applications, including:

Manufacturing: For process automation and control in assembly lines, packaging, and production systems.

Oil & Gas: In control systems for drilling and pipeline management, where reliability and performance are critical.

Water Treatment: For efficient control in water and wastewater treatment plants, ensuring safe and regulated operations.

Automotive: In robotic systems and production lines, managing I/O functions to ensure smooth operations.

Conclusion

The 1794-TB3 Terminal Base Units from Allen-Bradley are integral components for modern industrial automation systems. With their modular design, durability, and seamless integration with Flex I/O modules, they provide optimal performance across various sectors, including manufacturing, energy, and water treatment. These units ensure easy installation, reliability, and long-term system functionality, making them an essential tool for building and expanding industrial automation systems.

For more information or to purchase the 1794-TB3 Terminal Base Units, feel free to contact us!
