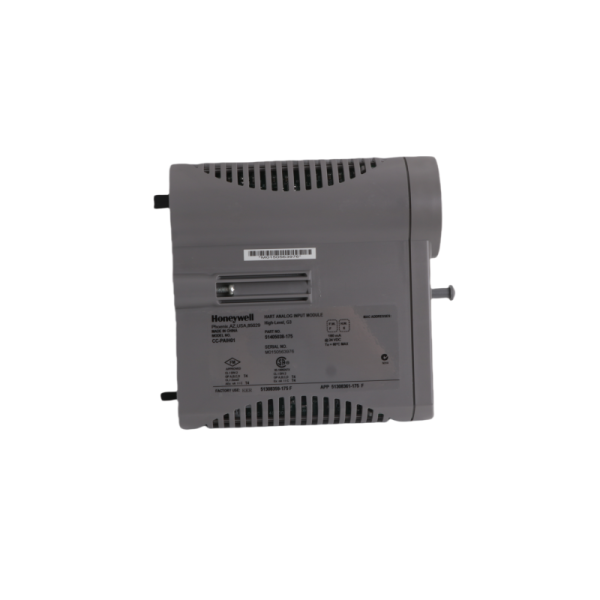

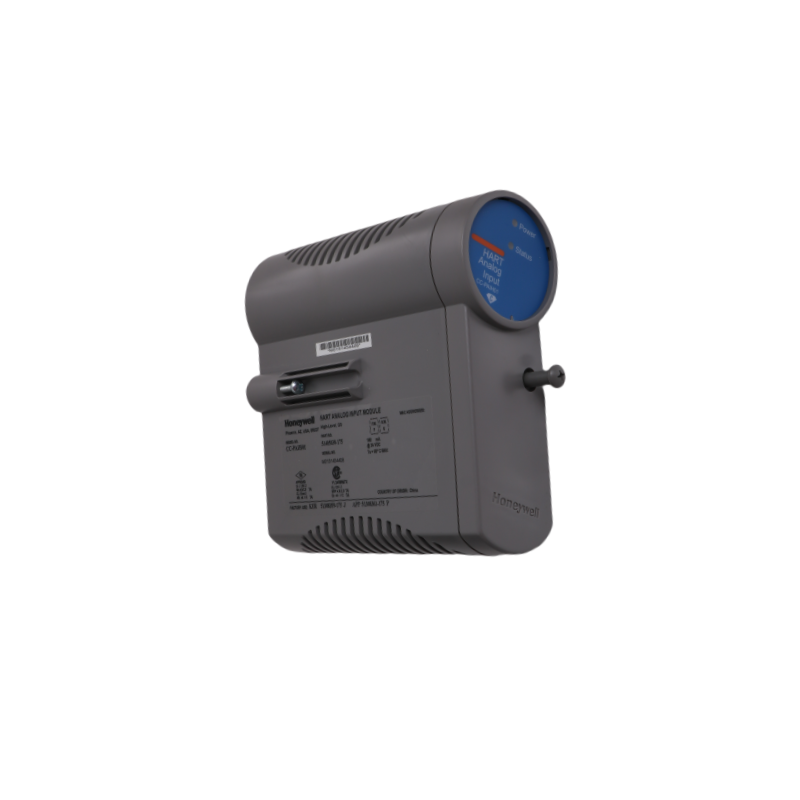

- Product NameHoneywell | CC-PAIH01 | I/O Module
- Item NO.CC-PAIH01
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryHONEYWELL
- BrandHONEYWELL
- Creation Time2024-12-16
Know More
|
Parameter |
Specification |
|
Model |
CC-PAIH01 - High-Level Analog Input with HART |
|
Input Type |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Channels |
16 (12 Single Ended / 4 Differential) |
|
Common Mode Rejection Ratio |
70 dB (dc to 60 Hz, 500 Ω source imbalance) |
|
Common Mode Voltage |
-6 to +5 V peak (dc to 60 Hz) |
|
A/D Converter Resolution |
16 bits |
|
Input Range |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω) |
|
Normal Mode Rejection Ratio |
19 dB (at 60 Hz) |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input |
± 30 Volts (differential inputs, no damage) |
|
Crosstalk |
-60 dB (dc to 60 Hz, channel-to-channel) |
|
Input Impedance (Voltage Inputs) |
> 10 MΩ (powered) |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy (@ CMV = 0 V) |
± 0.075% of full-scale (23.5° ± 2°C) |
|
± 0.15% of full-scale (0 to 60°C) |
|
|
Transmitter Field Power Conditioning |
Individually Protected Current Limiting Circuits for Class 1, Div 2 non-incendive interfacing; no fusing required |
