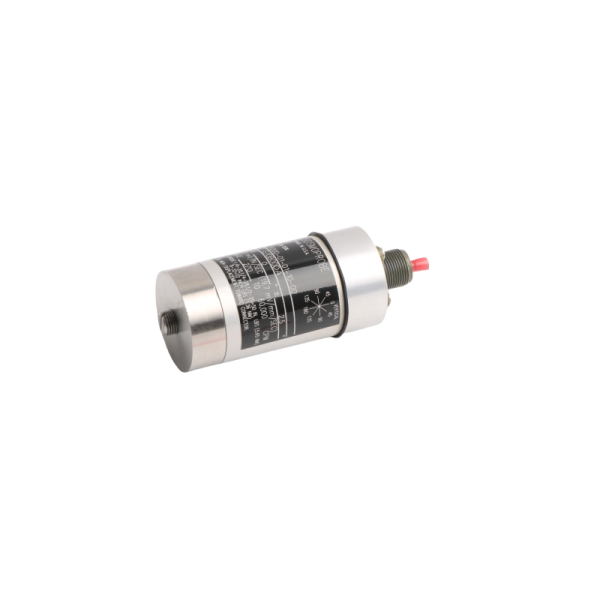

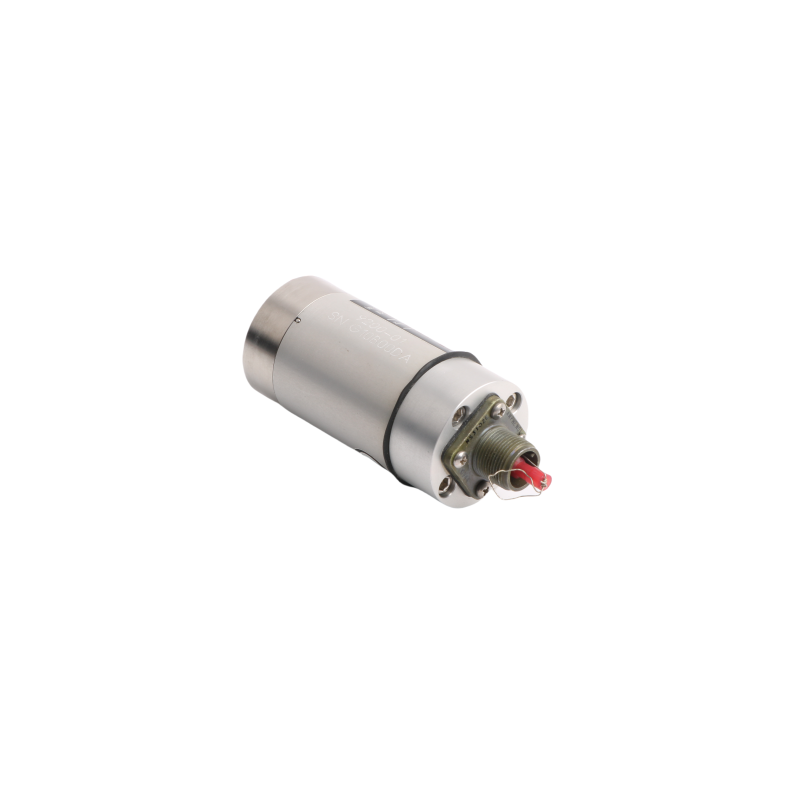

Bently Nevada | 9200-01-01-10-00 84661-08 | Two-wire Transducer
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 9200-01-01-10-00 84661-08 | Two-wire Transducer
- Item NO.9200-01-01-10-00 84661-08
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-03-24
|
24/7 on line service |
|
|
❑ Your best supplier contact: Sales Manager: Anna ❑ Click to send inquiry directly: mailto:sales8@apterpower.com ❑ Anything you want, you can call us: +86 18106909650 (Whatsapp) ❑ By the way, welcome to visit our company!!! Provide many hard-to-find Bently Nevada parts |
|
|
9200 Seismoprobe Velocity Transducers |
|
|
9200-AA-BB-CC-DD Two-wire Transducer |
9200-01-01-10-00 Ordering Information |
|
A: Transducer Mounting Angle/Minimum Operating Frequency Option |
|
|
01 | 0 ±2.5, 4.5 Hz (270 cpm) 02 | 45 ±2.5, 4.5 Hz (270 cpm) 03 | 90 ±2.5, 4.5 Hz (270 cpm) |
06 | 0 ±100, 10 Hz (600 cpm) 09 | 0 ±180, 15 Hz (900 cpm) |
|
B: Connector/Cable Option |
|
|
01 | Top Mount (no cable) 02 | Side Mount (no cable) 05 | Terminal block top mount (no cable) 10 | 10 feet (3.0 meter) |
15 | 15 feet (4.6 meter) 22 | 22 feet (6.7 meter) 32 | 32 feet (9.8 meter) 50 | 50 feet (15.2 meter) |
|
C: Mounting Base Option |
|
|
01 | Circular; 1/4-20 UNC stud 02 | Circular; 1/4-28 UNF stud 03 | Rectangular flange 04 | Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle 05 | No base; 1/2-20 UNF-3A stud 06 | Isolated circular 1/4-20 UNC stud |
07 | Isolated circular 1/4-28 UNF stud 08 | Isolated rectangular flange 09 | Isolated circular 5/8-18 UNF stud 10 | Circular; M10X1 stud 11 | Isolated circular M10X1 12 | Isolated circular 1/2-20 UNF-2A |
|
D: Agency Approval Option |
|
|
00 | No Approvals 01 | CSA |
04 | ATEX/IECEx |
|
