Bently Nevada | 89477-32 | Two-conductor 18 AWG twisted shielded cable

Bently Nevada | 89477-32 | Two-conductor 18 AWG twisted shielded cable

Item NO.: 89477-32
Inquiry

 if you need more details,you can scan below:



          Wechat                        Whatsapp

Detail

  • Product NameBently Nevada | 89477-32 | Two-conductor 18 AWG twisted shielded cable
  • Item NO.89477-32
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryBently nevada
  • BrandBently Nevada
  • Creation Time2025-03-24

Please believe we can do better



Sales manager

E-mail

whatsapp

website

Anna

sales8@apterpower.com

+86-18106909650

www.dcscpu.com


Excellent product quality



Bently Nevada Machinery Condition Monitoring

330500 Velomitor Piezo-velocity Sensor

89477-NN

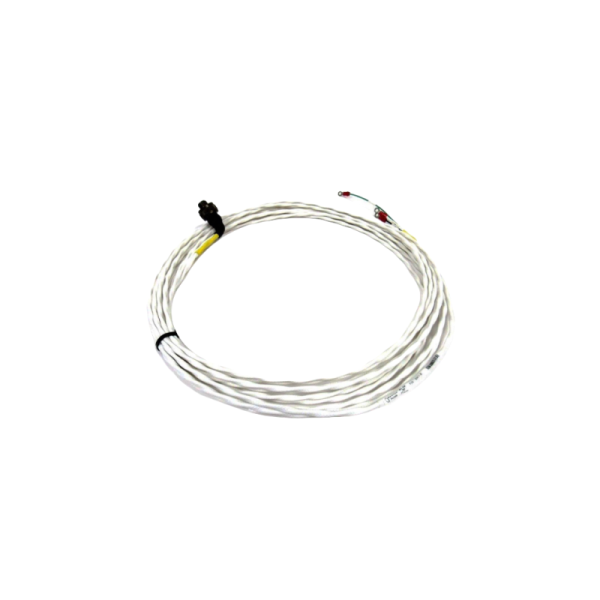

Two-conductor 18 AWG twisted, shielded cable with right angle two-socket plug at one end, terminal lugs at the other end.

Used with monitors and with 21128 Velocity Transducer Housing.

Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m)


Corporate Profile



---Decade-Long Industry Specialization

DCSCPU delivers precision-engineered PLC & DCS solutions with over 10 years of industrial automation expertise.

---Optimized Supply Chain Management

Strategically balanced cost-efficiency and accelerated delivery timelines for industrial components.

---Customizable Logistics Solutions

Multimodal shipping options tailored to project timelines and budgetary requirements.

---Customer-Centric Partnership Development

Cross-functional professional teams focused on long-term relationship building through technical excellence and operational reliability.


330500 sensor typical system combination



1. Sensor Series

330500 / 89477-NN

● Velomitor Piezo-velocity Sensor

● Frequency response range: 10 Hz - 2 kHz, sensitivity 20 mV/(in/s)

● Applicable: medium and low frequency vibration monitoring of gas turbines, pumps, compressors

330525 / 89477-XX

● High temperature version of Velomitor (up to +260°C)

● With armored cable, the order number suffix varies according to the length (such as 89477-05=5ft)

330400 / 149369-01

● Low frequency enhanced (5 Hz - 1 kHz)

● For ultra-low speed equipment such as turbine units

2. Installation accessories

21128

● Universal magnetic base housing

● Suitable for 330500 series, including explosion-proof certification

21689-01

● High temperature clamp kit (to +400°C)

● Contains ceramic insulating gasket, used with 330525

3. Cables and connectors

990-05-50-02-00

● Two-core shielded cable assembly (standard length 5m)

● With MIL-C-5015 plug, directly connected to 3500/42M monitor

CBL-2300-10

● Anti-interference armored extension cable (10m)

● IP67 protection, suitable for high-risk areas in refineries

4. Monitoring system

3500/42M

● 4-channel vibration monitoring module

● Supports Velomitor IEPE power supply, integrated in 3500 rack

3701/61-01-00

● Single-channel portable vibration transmitter

● Direct output 4-20mA, compatible with 330500 on-site rapid diagnosis
