Bently Nevada | 84661-17 | Standard Armored Interconnect Cable
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 84661-17 | Standard Armored Interconnect Cable
- Item NO.84661-17
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-03-24
|
Please believe we can do better |
|
||
|
Sales manager |
|
|
website |
|
Anna |
|||
|
Excellent product quality |
|
|
Bently Nevada Machinery Condition Monitoring
330505 Low Frequency Velocity Sensor 84661-NN

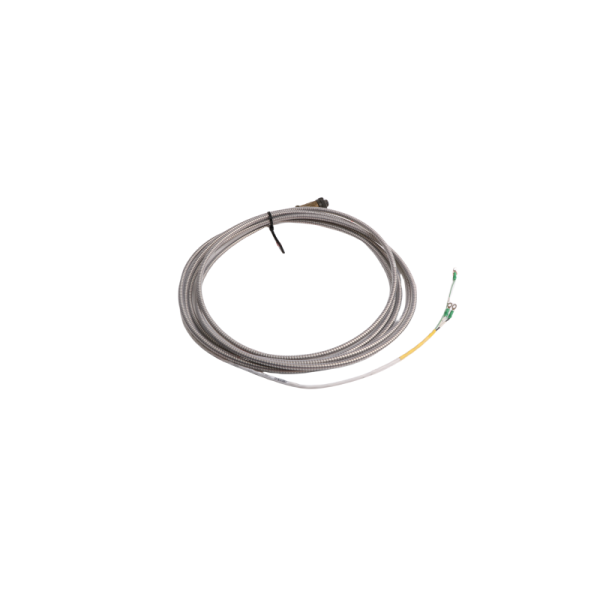

Standard Armored Interconnect Cable
Stainless steel armor over shielded 0.382 mm2 (22 AWG) cable with a moisture resistant female connector at the transducer end and ring lugs at the monitor end.
Temperature range -29 to 121°C (-20 to 250°F).
Minimum length 3 ft (0.91 m); maximum length 96 ft (29 m).
|
|
|
Corporate Profile |
|
|
---Decade-Long Industry Specialization DCSCPU delivers precision-engineered PLC & DCS solutions with over 10 years of industrial automation expertise. |
|
|
---Optimized Supply Chain Management Strategically balanced cost-efficiency and accelerated delivery timelines for industrial components. |
|
|
---Customizable Logistics Solutions Multimodal shipping options tailored to project timelines and budgetary requirements. |
|
|
---Customer-Centric Partnership Development Cross-functional professional teams focused on long-term relationship building through technical excellence and operational reliability. |
|
|
330500 sensor typical system combination |
|
|
1. Sensor Series 330500 / 89477-NN ● Velomitor Piezo-velocity Sensor ● Frequency response range: 10 Hz - 2 kHz, sensitivity 20 mV/(in/s) ● Applicable: medium and low frequency vibration monitoring of gas turbines, pumps, compressors 330525 / 89477-XX ● High temperature version of Velomitor (up to +260°C) ● With armored cable, the order number suffix varies according to the length (such as 89477-05=5ft) 330400 / 149369-01 ● Low frequency enhanced (5 Hz - 1 kHz) ● For ultra-low speed equipment such as turbine units |
|
|
2. Installation accessories 21128 ● Universal magnetic base housing ● Suitable for 330500 series, including explosion-proof certification 21689-01 ● High temperature clamp kit (to +400°C) ● Contains ceramic insulating gasket, used with 330525 |
|
|
3. Cables and connectors 990-05-50-02-00 ● Two-core shielded cable assembly (standard length 5m) ● With MIL-C-5015 plug, directly connected to 3500/42M monitor CBL-2300-10 ● Anti-interference armored extension cable (10m) ● IP67 protection, suitable for high-risk areas in refineries |
|
|
4. Monitoring system 3500/42M ● 4-channel vibration monitoring module ● Supports Velomitor IEPE power supply, integrated in 3500 rack 3701/61-01-00 ● Single-channel portable vibration transmitter ● Direct output 4-20mA, compatible with 330500 on-site rapid diagnosis |
|
