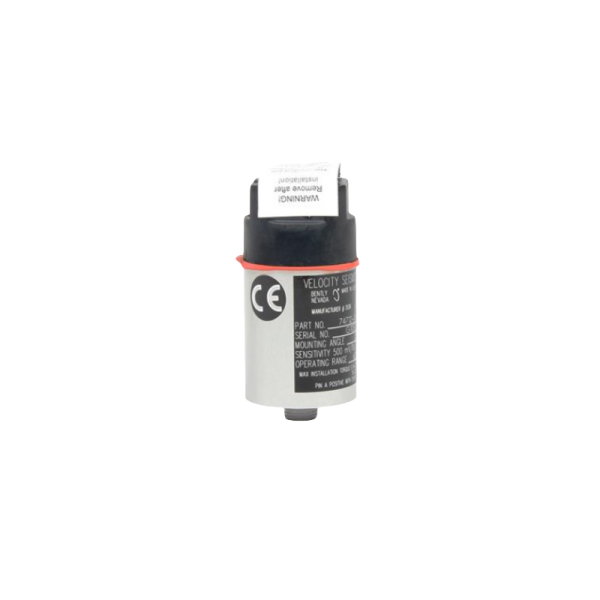

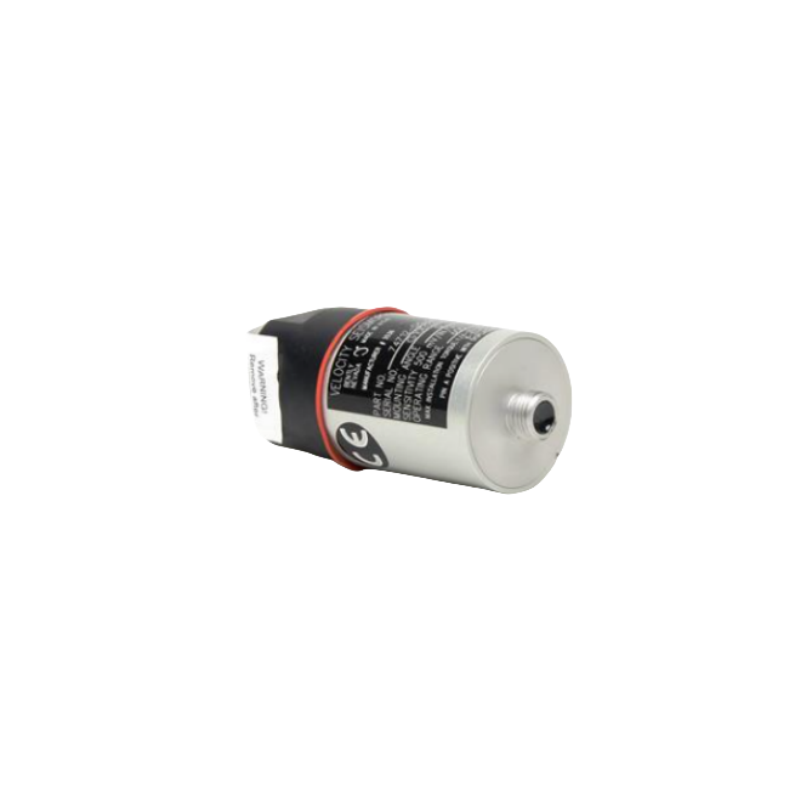

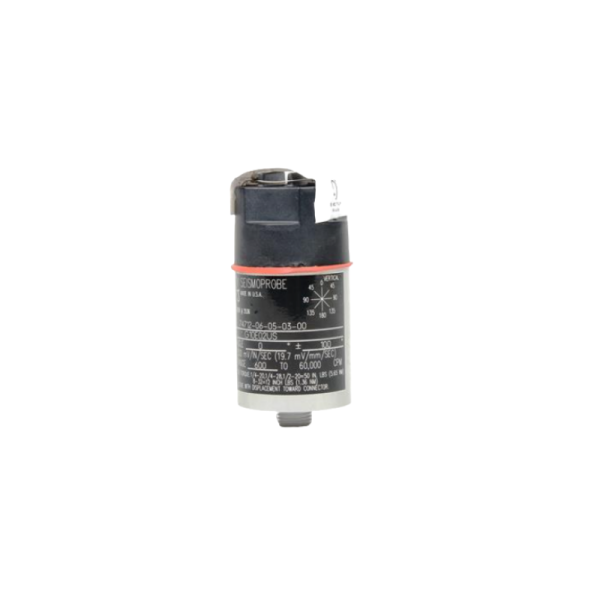

Bently Nevada | 74712-06-05-03-00 | High-temperature Two-wire Transducer
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 74712-06-05-03-00 | High-temperature Two-wire Transducer
- Item NO.74712-06-05-03-00
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-03-25
|
Please believe we can do better |
|
||
|
Sales manager |
|
|
website |
|
Anna |
|||
|
Excellent product quality |
|
|
Bently Nevada Machinery Condition Monitoring 74712 Seismoprobe Velocity Transducers | High-temperature Two-wire Transducer Standard Temperature -20°F to +400ºF (-29°C to +204ºC) 74712-AA-BB-CC-DD |
|
|
A: Transducer Mounting Angle/Minimum Operating Frequency Option 01 | 0 ±2.5, 4.5 Hz (270 cpm) 02 | 45 ±2.5, 4.5 Hz (270 cpm) 03 | 90 ±2.5, 4.5 Hz (270 cpm) 06 | 0 ±100, 10 Hz (600 cpm) 07 | 0 ±180, 15 Hz (900 cpm) |
|
|
B: Mounting Base Option 01 | Circular; 1/4-20 UNC stud 02 | Circular; 1/4-28 UNF stud 03 | Rectangular flange 04 | Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle 05 | No base; 1/2-20 UNF-3A stud |
06 | Isolated circular 1/4-20 UNC stud 07 | Isolated circular 1/4-28 UNF stud 08 | Isolated rectangular flange 09 | Isolated circular 5/8-18 UNF stud 10 | Circular; M10X1 stud 11 | Isolated circular M10X1 12 | Isolated circular 1/2-20 UNF-2A |
|
C: Connector Option 02 | Top Mount 03 | Terminal block top mount 04 | Side mount |
D: Agency Approval Option 00 | No Approvals 01 | CSA 04 | ATEX/IECEx |
|
330500 sensor typical system combination |
|
|
1.9200 Series (Velocity Transducers) Part Number 9200-05-01-10-00 ● Model: 9200 VS-2 ● Description: General-purpose two-wire vibration velocity sensor for industrial machinery monitoring, frequency range 4.5Hz–10kHz, temperature range -50°C to +120°C. Part Number 74712-AA-BB-CC-DD ● Model: 74712 High-Temperature Seismoprobe ● Description: High-temperature two-wire transducer, operating range -29°C to +204°C, with configurable mounting angles, bases, connectors, and certifications (API 670 compliant). |
|
|
2. 3300 XL Proximitor Series (Eddy Current Sensors) Part Number 330101-00-05-10-02-00 ● Model: 3300 XL 8mm Probe ● Description: Non-contact shaft vibration measurement for gas turbines/compressors, temperature range -40°C to +177°C, API 670 compliant. Part Number 330505-040-00-00 ● Model: 330505 Proximity Probe System ● Description: Includes probe, extension cable, and proximitor for radial vibration and axial displacement monitoring. |
|
|
3. 3500 Series (Machinery Protection System) Part Number 3500/25-01-00 ● Model: 3500/25 Vibration Monitor ● Description: Rack-mounted vibration monitoring module supporting velocity/acceleration inputs with relay alarms, designed for large rotating equipment. |
|
|
4. 1900/65 Series (Velocity Transmitters) Part Number 190065-01-00 ● Model: 1900/65-01 ● Description: Two-wire 4-20mA output vibration transmitter, frequency response 10Hz–1kHz, suitable for pumps, fans, and general machinery. |
|
|
5. 7200 Series (High-Temperature Accelerometers) Part Number 72001-01-00-03 ● Model: 7200 High Temp Accelerometer ● Description: Piezoelectric accelerometer for high-frequency vibration monitoring in gas/steam turbines, rated up to +260°C. |
|
