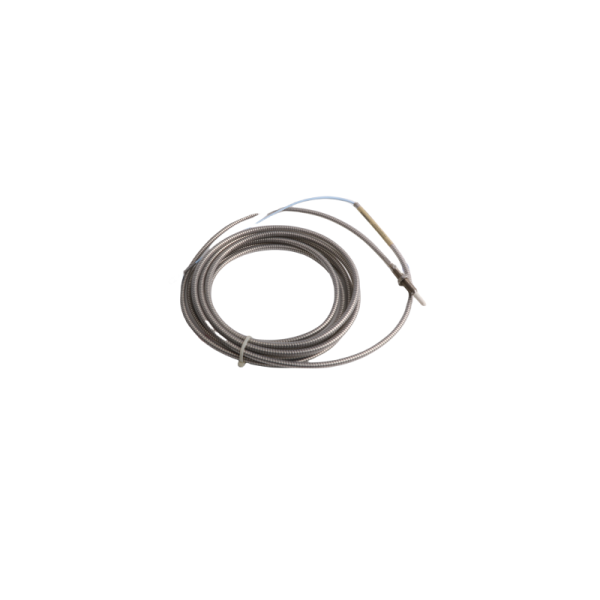

Bently Nevada | 330910-00-19-50-02-00 | 3300 NSv Proximity Probes

 Use with standard instruction manual

 Anna [ sales8@apterpower.com ]

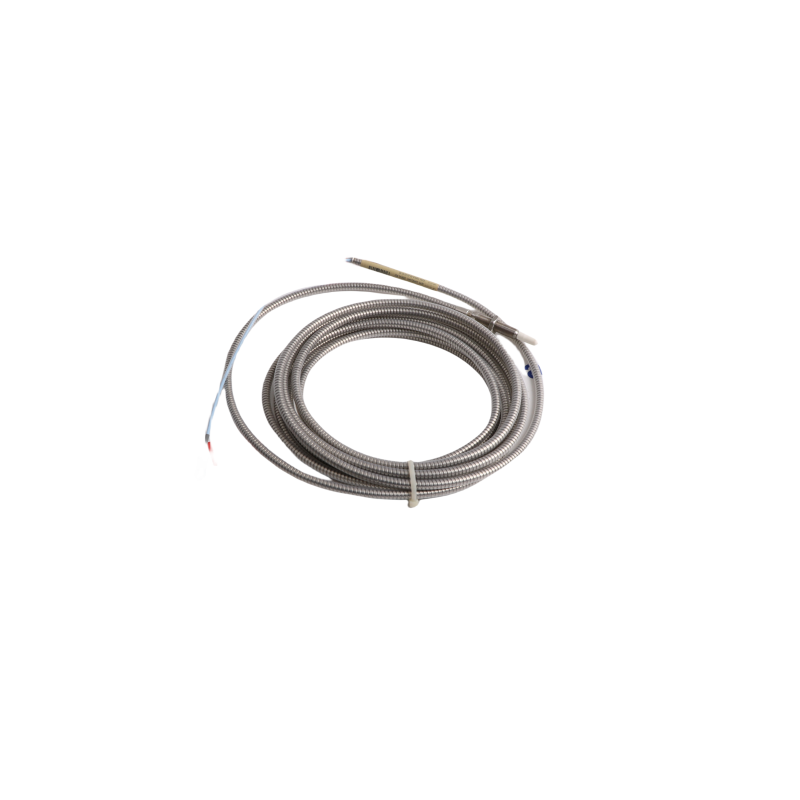

 3300 NSv Probe, M10X1 thread, with armor | 330910-AA-BB-CC-DD-EE

 A: A: Unthreaded Length Option :Order in increments of 10 mm.

 Length configuration:

 Example: 06 = 60 mm

 Maximum unthreaded length:230 mm

 Minimum unthreaded length:0 mm

 B: Overall Case Length Option:Order in increments of 10 mm.

 Metric thread configurations:

 Example: 06 = 60 mm

 Maximum length: 250 mm

 Minimum length: 20 mm

 C: Total Length Option

 05 | 0.5 meter (20 in)

 10 | 1.0 meter (39 in)

 50 | 5.0 meters (16.4 feet)

 70 | 7.0 meters (23.0 feet)

 D: Connector and Cable-Type Option

 01| Miniature coaxial ClickLoc connector with connector   protector, standard cable

 02 | Miniature coaxial ClickLoc connector, standard cable

 11 | Miniature coaxial ClickLoc connector with connector   protector, FluidLoc cable

 12 | Miniature coaxial ClickLoc connector, FluidLoc cable

 E: Agency Approval Option

 00 | Not required

 05 | Multiple Approvals

 Welcome to Inquiry Below

 Anna [ sales8@apterpower.com ]

 1.Probe Series

 3300 NSv Standard Probe

● Order Number: 330910-xx-xx-xx (suffix varies by length/thread type)

● Thread Options: M10x1, M8x1, 1/4-28 UNF, etc.

● Features: Vibration/displacement measurement in standard industrial environments; armor optional  (Armored/Unarmored).

 3300 NSv High-Temperature Probe

● Order Number: 330930-xx-xx-xx

● Features: Withstands up to 260°C (500°F); ideal for gas turbines, steam turbines, and other high-temperature applications.

 2.Extension Cables

 3300 XL NSv Standard Cable

● Order Number: 330800-xx-xx (length options: 05=5m, 10=10m; e.g., 330800-05-00 = 5m)

● Connector Type: Aviator connector (MIL-C-5015 compliant).

 3300 XL NSv High-Temperature Cable

● Order Number: 330850-xx-xx

● Temperature Rating: 200°C (392°F); compatible with high-temperature probes.

 3.Proximitor (Preamplifier)    3300 XL NSv Proximitor

 Single-Channel Proximitor

● Order Number: 330180-90-00

● Input Voltage: 18–30 VDC; standard 4–20 mA output.

 Dual-Channel Proximitor

● Order Number: 330180-91-00

● Application: Space-saving two-channel monitoring.

 4.Mounting Brackets & Accessories

 3300 NSv Probe Mounting Bracket (M10)

● Order Number: 330102-00-00

● Material: Stainless steel; compatible with M10-thread probes.

 3300 NSv Probe Holder Kit

● Order Number: 330105-01-00

● Includes: Mounting base, locknut, and anti-rotation shims.

 5.Calibration Tools

 TK-3 Proximitor Tester

● Order Number: 81070-01

● Function: Field calibration of proximitor output signals.

 3300 XL NSv Calibration Kit

● Order Number: 330700-01-00

● Includes: Calibration gap gauges, test cables, and accessories.
