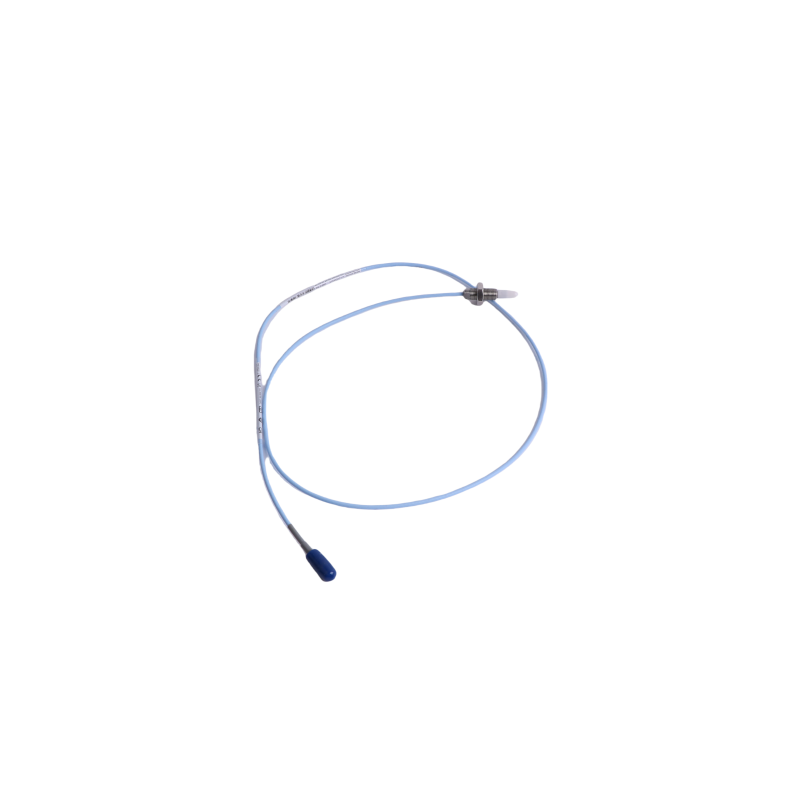

Bently Nevada | 330905-00-20-10-01-00/CN | 3300 NSv Proximity Probes
if you need more details,you can scan below:
Wechat Whatsapp
Detail
- Product NameBently Nevada | 330905-00-20-10-01-00/CN | 3300 NSv Proximity Probes
- Item NO.330905-00-20-10-01-00/CN
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryBently nevada
- BrandBently Nevada
- Creation Time2025-04-07
|
Inquiry Channel |
Sales Manager :Anna |
|
E-mail : sales8@apterpower.com |
|
|
Whatsapp : +86-18106909650 |
|
|
Website : www.dcscpu.com |
|
|
Ordering Information |
330905-AA-BB-CC-DD-EE |
|
Unthreaded length AA : Order in increments of 10 mm. Maximum unthreaded length: 230 mm Minimum unthreaded length: 0 mm |
|
|
Overall case length BB : Order in increments of 10 mm. Maximum length: 250 mm Maximum length: 250 mm |
|
|
Total cable length options CC : 05 = 0.5 meter (20 in) 10 = 1.0 meter (39 in) 50 = 5.0 meters (16.4 feet) 70 = 7.0 meters (23.0 feet) |
|
|
Connector and cable type DD : 01 = Miniature coaxial ClickLoc connector with connector protector, standard cable 02 = Miniature coaxial ClickLoc connector, standard cable 11 = Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable 12 = Miniature coaxial ClickLoc connector, FluidLoc cable |
|
|
Agency approvals EE : 00 = Not required 05 = Multiple Approvals |
|
|
Related Series |
3300 XL NSv Proximity Transducer System |
|
◣Sensor Probe Series◥ 1.3300 XL NSv 8mm Probe Suitable for most industrial machinery (e.g., steam turbines, compressors) with a wide temperature range (-40°C to +150°C). 2.3300 XL NSv 5mm Probe Designed for small machinery with space constraints or applications requiring high- frequency response. |
|
|
◣ Proximitor (Preamplifier) Series◥ 1.3300 XL NSv Proximitor Supports multi-channel input, provides standard 4-20mA output, and features strong electromagnetic interference (EMI) resistance. 2.3300 XL NSv Dual-Channel Proximitor Compact design for high-density installation requirements. |
|
|
◣Cables & Connectivity Components◥ 1.Extension Cables (e.g., CA-5, CA-6) Low-noise shielded cables with lengths ranging from 1m to 15m, armored for durability. 2.Connectors & Terminal Kits Includes waterproof connectors (IP67), BNC/TNC interface adapters, etc. |
|
|
◣System Accessories◥ 1.Mounting Brackets & Clamps Such as rail-mount kits and probe fixation brackets (316 stainless steel). 2.Calibration Tools (TK-3 Calibrator) Used for on-site calibration of probe gap voltage. |
|
|
◣Special Application Extensions◥ 1.3300 XL NSv Thrust Displacement Monitoring Kit Includes dual-probe configurations for thrust bearing monitoring. 2.Phase/Speed Monitoring Modules Integrated with Keyphasor® technology for precise rotational speed and phase reference signals. |
|
